How is a rapid injection mold made?

August 8, 2019

We are frequently asked how we manufacture injection molds, and more specifically how do we do it so quickly. To answer this, it helps to put our services into context. The cost and time required to produce traditional high-volume production injection mold tooling are a consequence of needing to maximize productivity and minimize per part costs for large production volumes. Very high volumes and high production rates dictate hardened steel tooling with full automation, multiple cavities, and advanced runner and cooling systems. Such tools are complex, time consuming to produce and test, and even more difficult to modify once in operation. However, when the customer requires a few hundred injection molded components on a tight delivery schedule, and the rate of production is not required to be high, a completely different mold production approach can be employed. This is what Xcentric has been perfecting for over 20 years.

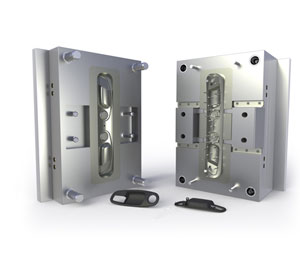

Rapid Injection Mold Tool
Xcentric helps our clients beat their time to market requirements by rapidly creating custom injection mold tools thousands of times each year.

Understanding customer requirements is the foundation for every successful injection mold project

From the very outset of every client engagement, we strive to understand the full context of the project we are producing molded components for, to be sure we are addressing the customer’s primary needs and are making the best decisions for the mold design. For example:

  • What is the end use of the product?
  • What do the components we are molding do?
  • Will components be used for form, fit, function testing?
  • Is the project only a model for a coming trade show?
  • Are the components intended as end-use production parts?
  • How was the requested material chosen and what were the requirements?
  • Do the components need to have a high-quality surface finish or special texture?
  • Will the customer need 25 components in a few days or 250,000 over the next few months?

Understanding and acting on the answers to each of these questions are the foundation of a successful injection molding project.

Translating requirements into fast action

Once we have gathered the requisite contextual information, our engineering and design team initiates an extremely tightly managed process of converting requirements and 3D CAD data into a mold proposal. Even at this early stage the project is already being managed by our proprietary design and production expert system XMBM to assure efficient execution at every stage downstream. This is essential, in that it assures that everything quoted can be designed, machined, and molded efficiently to meet our very short delivery timelines. Mold design engineers take into consideration the specific characteristics of the molded polymer, the required production volume and rate, and per part cost objectives of the customer. Using our proprietary design engine, the mold designer then completes the mold design in a matter of hours. Yes, hours, not days or weeks. This is possible because our designers can draw on decades of experience and an enormous library of existing solutions that can be quickly deployed, saving time and reducing variability from project to project. There are no shortcuts, simply a very efficient means of getting to a mold design solution.

Form follows function when designing an injection mold

Even within the sub-category of prototype and low volume injection molding, there are many choices to be made on specifically how each mold is to function. In the case of very simple low volume components in a forgiving material, the mold would be a simple single cavity open and close design. When undercuts are required the designer will consider current and future production volumes to decide if the tool will be automated or include hand-loaded inserts for these features. The use of hand-loaded inserts reduces the cost and production time of the mold, but generally increases the per part cost due to manual tending of the molding machine. Finally, in the case of complex geometries, including inserts and overmolded features in multiple materials, the full spectrum of design concepts will be deployed to balance product needs with cost and delivery time constraints. In the end, everything that can be molded in a complex high rate production mold can be molded in an Xcentric mold, and even in these cases our design process only requires a few hours for even the most complex designs. Again, a combination of great people, streamlined processes, and our unique expert system makes this possible.

Design validation in electrons not metal

Following initial mold design, our team performs mold flow analysis to reduce the likelihood of problems in the molding process. Depending on the complexity of the molded component, this can be a simple filling simulation all the way to complex warpage and shrinkage analysis, fiber orientation estimates for filled polymers, and other factors. Catching issues and collaborating closely with our clients at this stage to resolve potential problems leads to better products and higher on-time-delivery rates. Although we are quite nimble in rectifying problems that arise in the molding process, it is far easier and more efficient to do this when the mold is still in CAD and not in the press. Ultimately the completed mold design is reviewed with the client for approval prior to production.

From CAD to CAM, preparing for production

Once the mold design is complete, the process starts to really accelerate. The individual components of the mold (core, cavity, inserts, actions, ejector pins, etc.) are designated for their respective manufacturing process: CNC machining, EDM (electrical discharge machining), grinding, and manual machining. As with all prior steps, our expert system manages the flow of each of these components to their designated recipient in the appropriate order and quality so that the CAM team can be as efficient as possible. In many cases the g-code for simple components has already been produced during the design phase, but for more complex molds the CAM team will further optimize cutter path selection to assure best possible production rate and surface finish. Semi-automated cutter path planning and validation helps us save time, reduce variability, and increase the quality of all mold components. Typically designs are transferred from initial customer CAD through to completed g-code ready to mill within a day. That is moving quite fast in the injection molding world.

Hitting the production floor to make the injection mold

Transferring CAM information to the production floor again relies on the scheduling engine of our proprietary expert system. Depending on the component or EDM electrode to be machined, an appropriate three or five axis mill will be scheduled and the matching stock material selected and delivered to the milling machine. To maximize efficiency, stock mold materials, machining routines, cutters, and supporting processes are all predetermined and controlled to work in concert. This again follows the philosophy that controlling the end-to-end process details from quoting to design to manufacture yields repeatable high-quality results on a very compressed time scale. Likewise, minimizing the “dead time” between each step in the mold manufacturing process saves hours in every project, which in the case of our average project represents a meaningful percentage of the total time on task, allowing us to deliver fast. So, it is not that we necessarily machine faster, and we certainly do not cut corners, since doing so will only slow us down later in the mold finishing stage, it is that we plan and execute well.

The expert finishing touches complete the injection mold build process

Production of high-quality injection molds will always demand the personal attention of expert mold makers. At Xcentric we have a team of highly talented and hugely experienced mold makers who finish and test every mold to assure proper functioning of the mold and to achieve the desired surface finish of the molded components. This is part engineering and part artistry and cannot be rushed.  So, all of the efficiency we build into the prior mold production steps assures that this team has enough time to do the mold finishing process properly. Naturally we do everything possible to maximize the mold surface finish quality coming out of CNC and EDM so that manual finishing or laser texturing is less difficult. Finally, the various components of the mold are all brought together in the assembly department where the functional mold is built up and tested prior to delivery to the molding department.

Now let’s do that a few thousand times a year

So, you now have a brief glimpse into how we make an injection mold efficiently for prototypes, limited production volumes, or even production parts in the hundreds of thousands. But how do we do this consistently over and over and deliver all of this, including the molded components, in less than fifteen business days? No mystery, it is again great people, clever processes, and a unique expert system orchestrating a highly complex process in a way that is designed for repeatable success, even with the huge variability in customer and product requirements from project to project. This is what makes Xcentric truly exceptional in the injection molding world.
